Description
Specification

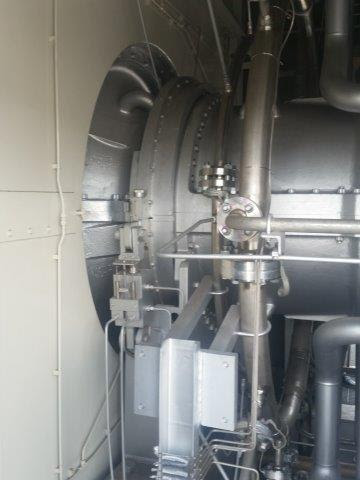

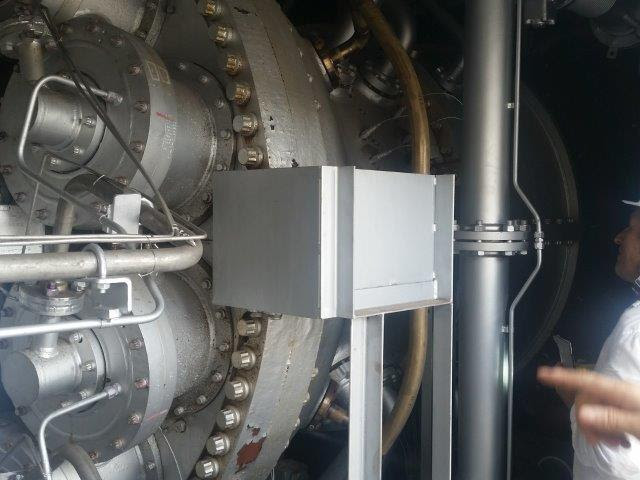

GAS-TURBINE
- Maker: MHPS(Mitsubishi Hitachi Power System)
- Capacity: 34,000kw
- Rotation: 7,275min-1
- Inlet Pressure: 1.67 MPa
- Outlet Pressure: 1.13 kPa
- Inlet Temperature: 1,280°C
- Outlet Temperature: 568°C
- Turbine stage: 3
- Year: 2011
GENERATOR
- Maker: Siemens
- Capacity: 37,778kVA
- Frequency: 50Hz
- Phases: 3
- Voltage: 11,500V
- Current: 1897A
- Power Factor: 0.90
- Type of Cooling: Air Cooling
- Class of insulation: F
- Year: 2011

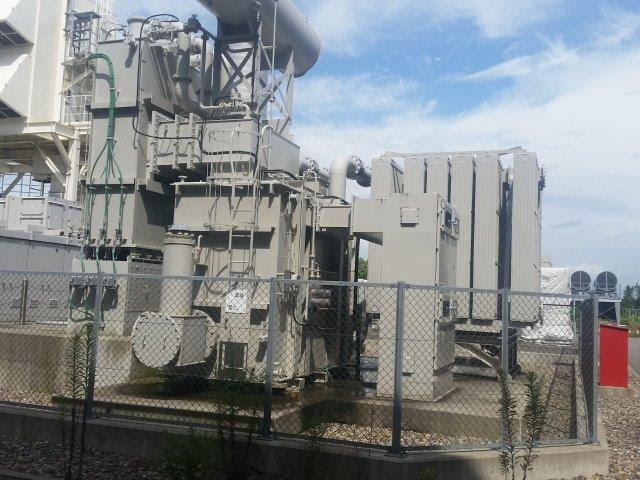

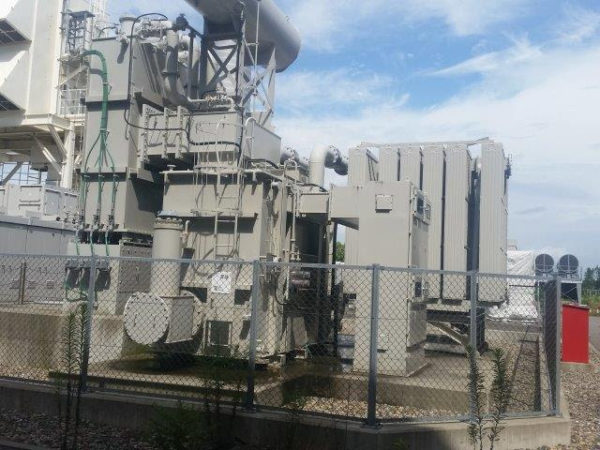

TRANSFORMER
- Maker: AE-POWER(JAPAN)
- Capacity: 38,000Kva

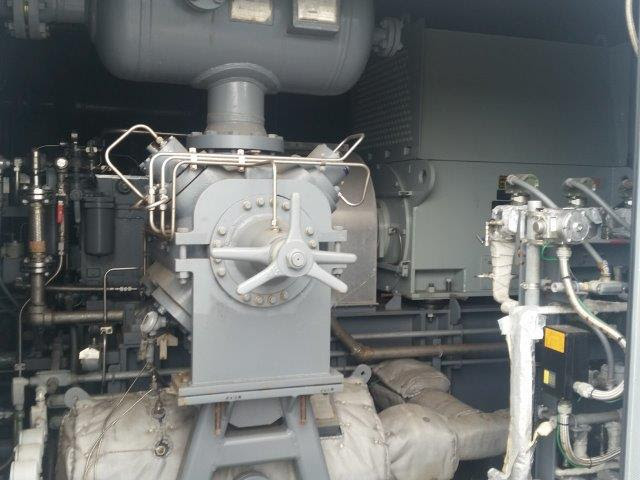

FUEL GAS COMPRESSOR
- Maker: EXTERRAN
- Capacity: 8,060kg/h
FUEL: LNG-A, LNG-B
Remark
- Year: Jan 31st, 2011
- Total Used hours: 695hrs
- Start time: 89
- Stopped operation: July 8th, 2014
- All auxiliaries for this power plant are included.
Other details are subject to the customer’s request.
